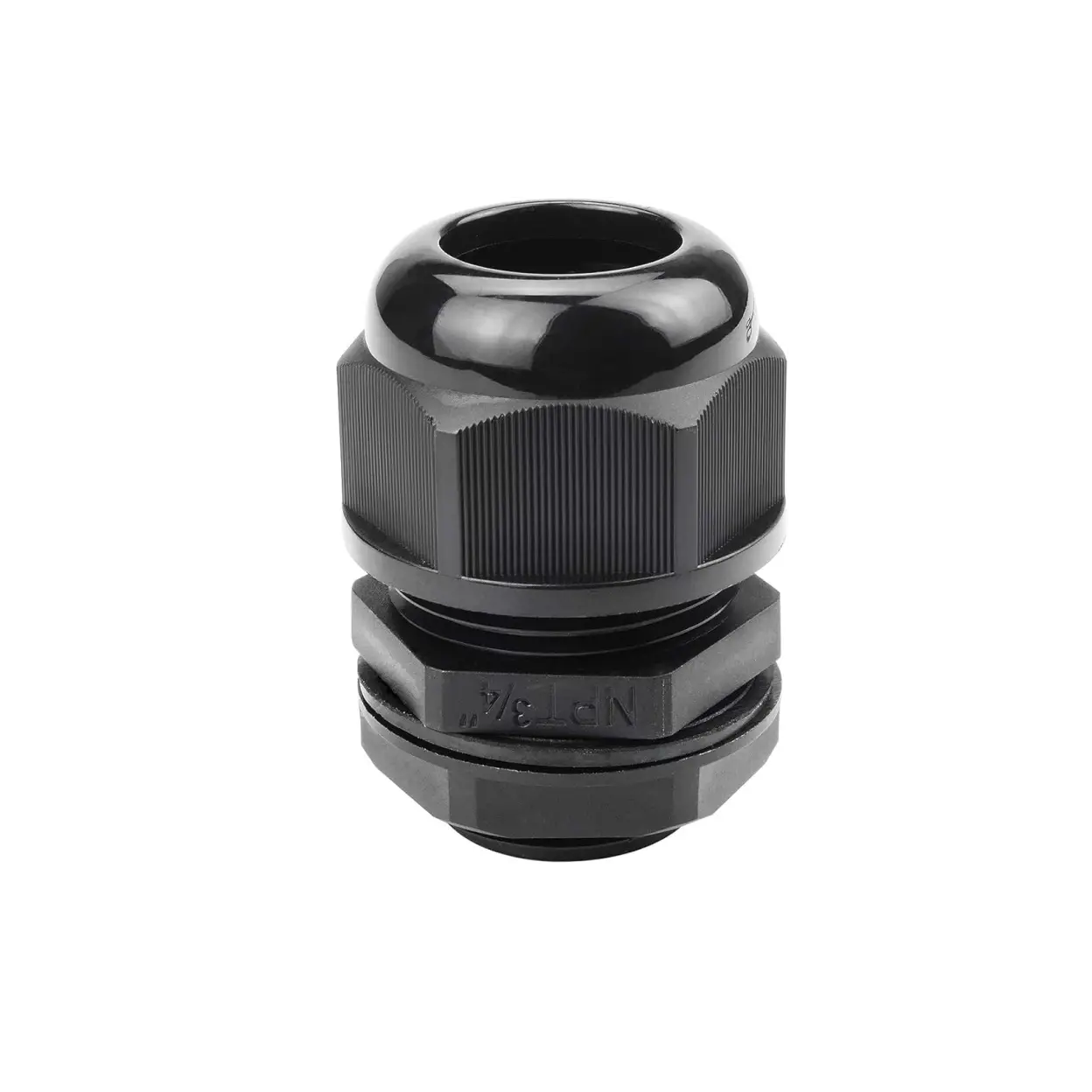

3/4″ IP68 Nylon Strain Relief Cord Grip – NPT Cable Gland (Black)
$6.95
3/4″ NPT IP68 cable gland with nylon body and EPDM seal. UV- and oil-resistant for rugged solar installations. Fits 12.5–18mm cables. UL Listed, RoHS compliant. Ideal for strain relief in solar kits, junction boxes, or battery disconnects.
Designed for rugged Canadian installs, this 3/4″ NPT IP68-rated cable gland delivers watertight, dustproof strain relief for electrical enclosures, combiner boxes, junctions, and solar kits. Crafted from tough nylon 6/6, it’s UV, oil, and chemical resistant, making it ideal for outdoor or off-grid use.
Compatible with cable diameters from 12.5mm to 18mm, it includes a multi-piece compression seal and locking nut for secure, tool-free installation. Commonly used for sealing solar PV wiring entry points into combiner boxes, battery enclosures, or inverter cabinets.
✅ Key Features
- Thread Type: NPT 3/4″
- Cable Range: 12.5 – 18mm
- Ingress Protection: IP68 waterproof & dustproof
- Material: Nylon PA66 (UV & corrosion resistant)
- Temperature Range: -40°C to +100°C
- Includes: Lock nut, washer, body, seal, sealing nut
- Spanner Size: 33mm
- Approvals: UL Listed, CE, RoHS
- Used in solar kits, junction boxes, inverters, and off-grid systems

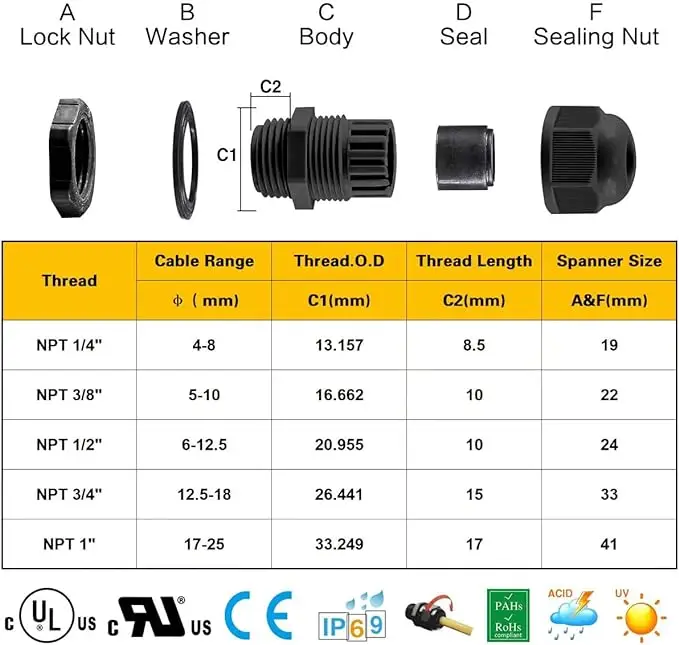

🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Thread Type | NPT 3/4″ |
| Cable Diameter Range | 12.5mm – 18mm |
| Thread Outer Dia | 26.441 mm |
| Thread Length | 15 mm |
| Spanner Size | 33 mm |
| Material | Nylon PA66 |
| Sealing Ring | EPDM Rubber |
| IP Rating | IP68 |
| UV Resistance | Yes |
| Certifications | UL, cUL, RoHS, CE |
| Operating Temp | -40°C to +100°C |
| Application | Solar kits, junction boxes, DC disconnects, off-grid wiring |
