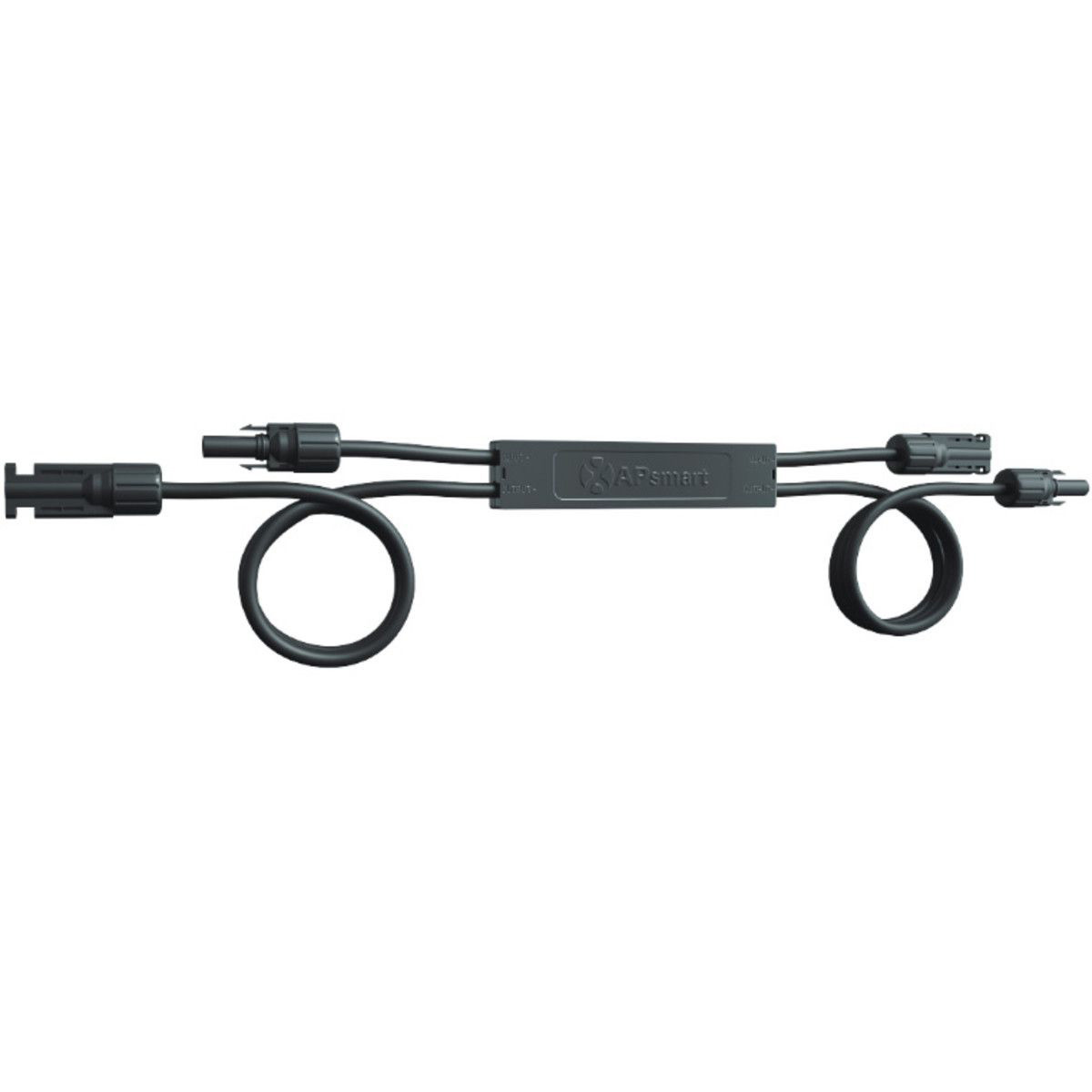

APsmart | RSD-S-PLC Rapid Shutdown Device
$54.95
RSD-S-PLC by APsmart is a SunSpec-compliant rapid shutdown device for 1000V/1500V solar arrays, offering PLC-based emergency disconnect and full NEC 2017 compliance.
RSD-S-PLC Rapid Shutdown Device | APsmart
Ensure NEC-compliant solar safety with APsmart’s RSD-S-PLC module, engineered for fast, reliable shutdown during emergencies.
Designed for residential and commercial solar systems, the APsmart RSD-S-PLC provides seamless integration with SunSpec-compliant inverters and PLC transmitters. When paired with an APsmart Transmitter-PLC, this device constantly monitors the heartbeat signal to maintain system operation. The moment this signal is absent—either automatically or manually via breaker switch—the RSD-S-PLC triggers a rapid shutdown, immediately cutting power at the module level. Its rugged, IP68-rated design and wide voltage range make it a dependable choice for both off-grid and grid-tied applications.
🔧 Technical Specifications
| Parameter | Specification |
|---|---|
| Model | RSD-S-PLC |
| Input Voltage Range | 8–80V DC |
| Max Continuous Input Current | 15A |
| Max Input Power | 550W |
| Output Voltage Range | 8–80V DC |
| Output Power Range | 0–550W |
| Max System Voltage | 1000V / 1500V |
| Dimensions (LxWxH) | 129mm x 30mm x 16mm (5″ x 1.2″ x 0.6″) |
| Cable Length | Input: 250mm / Output: 1200mm (Customizable) |
| Connector Type | MC4 or MC4 Compatible |
| Enclosure Rating | IP68 / NEMA Type 6P |
| Operating Temp | -40°C to +85°C |
| Communication Protocol | PLC (Power Line Communication) |
| Overtemperature Protection | Yes |
✅ Key Features
- NEC 2017 (690.12) compliant rapid shutdown device
- Supports 1000V & 1500V systems (UL & TUV)
- Plug-and-play with MC4/MC4-Evo2 compatible connectors
- SunSpec-compliant and compatible with APsmart Transmitter-PLC
- UL1741, CSA, FCC, IEC/EN certified
- Built-in overtemperature protection and rugged IP68 enclosure
- Ideal for rooftop systems, ground mounts, commercial arrays
Be the first to review “APsmart | RSD-S-PLC Rapid Shutdown Device”
Related products
Mounting & Structural

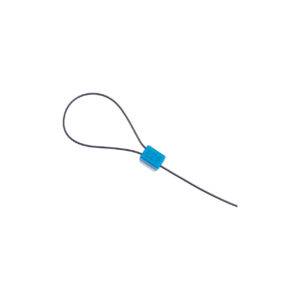

EZ Solar CableLoc | Tool-Free Stainless Steel | Cable Tie for PV Systems
Energy Storage & Batteries

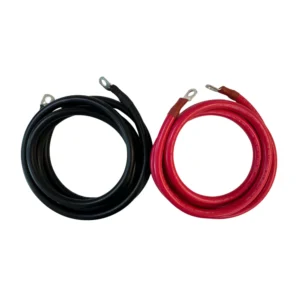

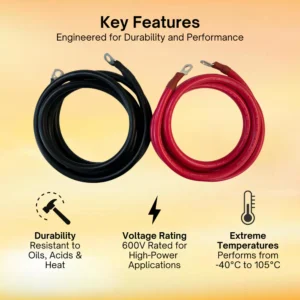

2/0 AWG Solar Battery Cable Kit – 10FT with 1/2″ Lugs (Red + Black)
