Canadian Solar | 5kW-7KW Single Phase | String Inverter
$2,416.00 – $2,850.00
Canadian Solar 5kW single-phase inverter with dual MPPT, WiFi monitoring, 98% efficiency, and full safety suite. Easy to install, ultra-reliable, IP65 weatherproof — perfect for high-performance residential solar systems. Built-in protection with AFCI option.
Compact. Efficient. Built for Power.

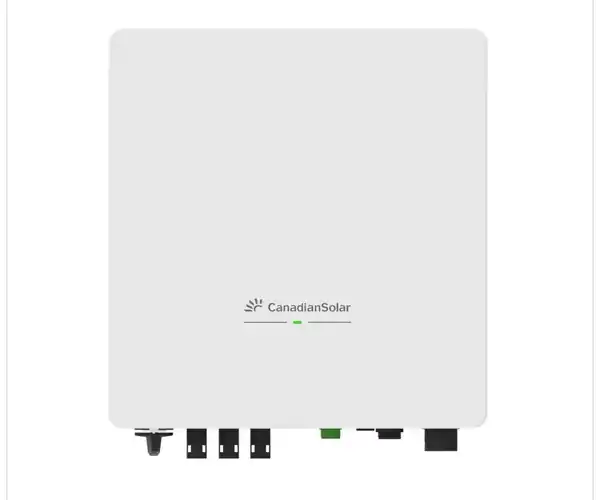

The Canadian Solar CSI-5K-S22003-E is a 5,000W single-phase string inverter engineered for residential and small commercial solar systems. With 98.0% peak efficiency, dual MPPT inputs, and integrated protections, this unit delivers outstanding performance in a sleek, wall-mountable chassis.
Designed for Canada’s climate extremes and DIY-friendliness, it supports high-current PV modules, includes integrated DC/AC safety features, and offers real-time monitoring via WiFi and mobile app.
Key Features
- High Efficiency: 98.0% peak / 97.5% Euro efficiency
- Dual MPPT: Two independent MPPT inputs (15A each)
- Plug & Play: MC4 DC inputs, Quick AC connector, LED+APP display
- Smart Ready: WiFi monitoring, RS485, zero-export optional
- Built Tough: IP65 rated, operates from -25°C to +60°C, passively cooled
- Protection Galore: Reverse polarity, over-voltage, short-circuit, AFCI (optional)
Technical Specifications
| Category | Details |
| Model | CSI-5K-S22003-E |
| Rated Output Power | 5000W |
| Max Output Power | 5500W |
| Input Voltage Range | 100V – 500V MPPT / 600V Max |
| Start Voltage | 110V |
| Input Current | 15A + 15A |
| MPPT Trackers | 2 |
| AC Voltage Range | 180V – 280V (Nominal: 220/230/240V) |
| Grid Frequency | 50/60Hz (±5) |
| Max Output Current | 25A |
| Power Factor | > 0.99 |
| THD | < 3% |
| Efficiency | 98.0% (peak), 97.5% (Euro) |
Safety & Protection
- Integrated DC switch
- AFCI optional
- Reverse polarity, short circuit & overvoltage protection
- Residual current & insulation monitoring
- Transformerless, low night consumption (<1W)
Physical Specs
| Dimensions | 355 × 435 × 158 mm |
| Weight | 13.5 kg |
| Installation | Wall-mounted |
| DC Connector | MC4 |
| AC Connector | Quick plug |
| Cooling | Natural convection |
| Protection Rating | IP65 |
| Max Altitude | 4000m (derating above 3000m) |
| Operating Temp | -25°C to 60°C (derating above 45°C) |
| Noise Level | < 25 dBA |
| Display | LED indicators + mobile app via WiFi |
Certifications
- IEC 62109-1/2, IEC 61000-6-1 / 6-3
- Grid Code: IEC 61727, IEC 62116, ABNT NBR 16149/16150:2013
- Compatible with Smart Meters or CT for export limitation
| Wattage | 5KW, 7KW |
|---|
