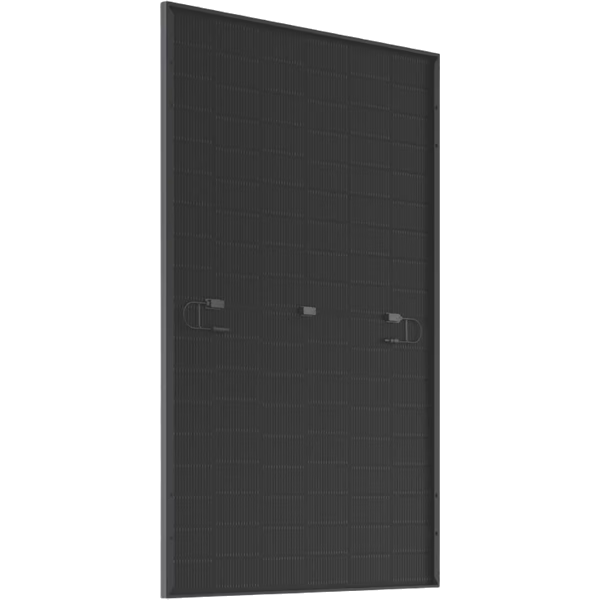

JA Solar JAM78D30 605W | Bifacial Mono PERC Solar Panel – 35mm Frame
$175.00
605W bifacial mono PERC solar panel from JA Solar with 11BB half-cell technology. Dual-glass rear-side gain up to 25%. 1500V rated, Class C fire-tested, snow/wind load certified. Ideal for utility, commercial, and high-efficiency ground-mount solar systems.
High-Efficiency Bifacial Power for Utility-Scale and Large Commercial PV Projects
The JA Solar JAM78D30-605/MB is a 605W monocrystalline bifacial PERC solar panel, delivering ultra-high output and rear-side gain for large-scale solar farms and commercial installations. Engineered with 11-busbar half-cell technology, this module achieves higher power density and improved shading tolerance with minimal degradation over time.
Featuring bifacial glass-glass construction, it allows rear-side energy harvesting up to 25%, making it ideal for albedo-rich environments (snow, gravel, white membrane roofs). With a slim 35mm anodized aluminum alloy frameand 1500V system voltage support, it integrates easily into utility racking systems.
✅ Key Features
- 605W rated power, bifacial PERC module
- 11-busbar half-cell mono design for low resistance
- Bifacial glass-glass architecture with rear-side gain up to 25%
- 1500V maximum system voltage
- Reduced LCOE with higher energy yield and efficiency
- Anti-PID, salt-mist and ammonia-resistant, fire-rated
- 25-year linear performance warranty / 12-year product warranty
🔧 Technical Specifications
| Parameter | Value |
|---|---|
| Model | JAM78D30-605/MB |
| Rated Power (Pmax) | 605W |
| Efficiency | 21.2% |
| Power Tolerance | 0~+5W |
| Open Circuit Voltage (Voc) | 45.9V |
| Short Circuit Current (Isc) | 16.0A |
| Max Power Voltage (Vmp) | 38.7V |
| Max Power Current (Imp) | 15.63A |
| Module Dimensions (mm) | 2465 x 1134 x 35 mm |
| Weight | 33.5 kg |
| Cell Type | Mono PERC, 182mm half-cell (11BB) |
| Glass | 2.0mm dual glass |
| Frame | Anodized aluminum alloy (35mm) |
| J-Box | IP68, 3 diodes |
| Connector | MC4 or compatible |
| Max System Voltage | 1500V DC |
| Fire Rating | Class C (Type 1 or 2) |
| Mechanical Load | Snow: 5400Pa / Wind: 2400Pa |
| Operating Temperature | -40°C to +85°C |
| Certifications | IEC61215, IEC61730, CE, UL |
| Warranty | 25-Year Linear / 12-Year Product |
