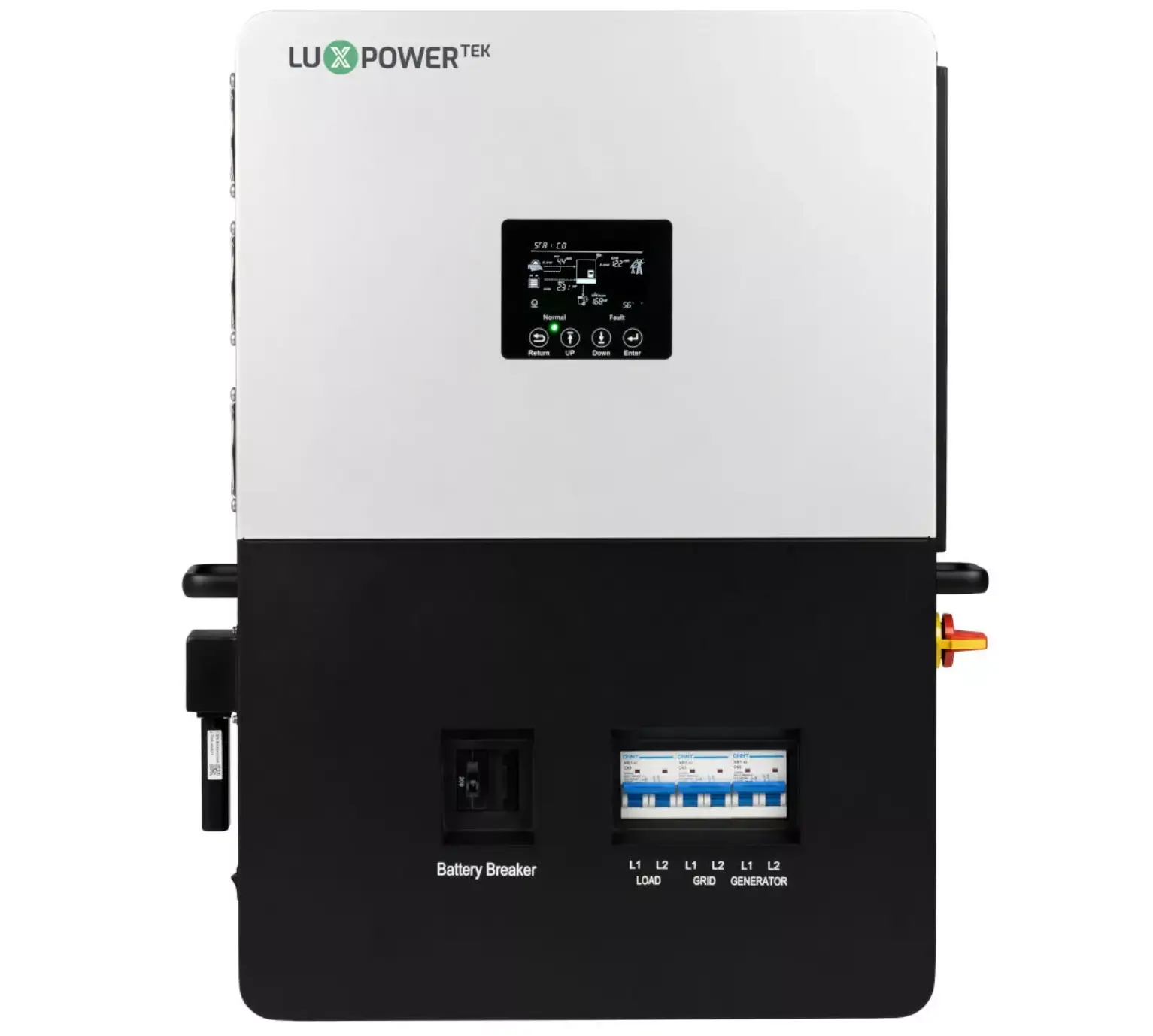

LuxPower 12kW Hybrid Inverter – Model LXP-SNA-12K-US
LuxPower 12kW Hybrid Inverter – Model LXP-SNA-12K-US
$3,295.27
12kW hybrid split-phase inverter with 24kW PV input, dual MPPT, generator support, and smart load ports. Backed by Maple Leaf’s 10-year warranty. Supports lithium and lead-acid 48V batteries. UPS-level switching for seamless backup power.
Commercial-Grade Power for Homes and Small Businesses
The Maple Leaf LXP-SNA-12K-US is a 12,000W hybrid split-phase inverter built for demanding solar installations in North America. Backed by Maple Leaf Power Systems’ 10-year extended warranty, this inverter is designed for seamless on-grid/off-grid switching, generator integration, AC coupling, and advanced smart load management.
Perfect for modern homes, workshops, farms, or backup systems, it supports up to 24kW of PV input and delivers ultra-fast transfer times (<10ms) during outages. Parallel up to 3 units for larger loads or future expansion.
✅ Key Features
- 12kW output / 24kW PV input capacity
- Split-phase 120/240V or 120/208V output
- Dual MPPT (2 inputs) with 100-480V PV range
- Supports AC-coupling and peak shaving
- Smart Load + EPS Load ports (up to 12kW each)

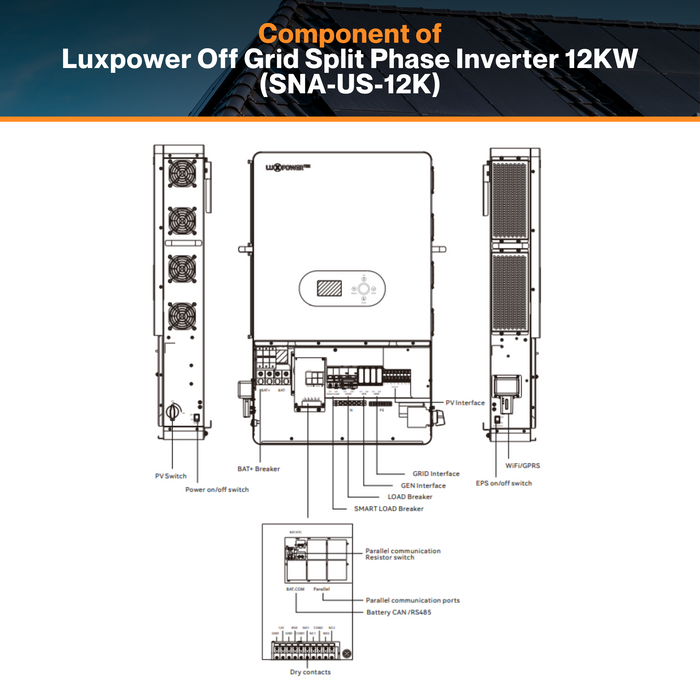

- Integrated DC, battery, load, and generator breakers
- Dedicated generator port with auto boost + exercise
- <10ms UPS transfer time (single unit), <20ms (parallel)
- Compatible with all 48V lithium-ion and lead-acid batteries
🔧 Electrical Specs
| Parameter | Details |
|---|---|
| Model | LXP-SNA-12K-US |
| Rated Output Power | 12,000W |
| Max PV Array Power | 24,000W |
| MPPT Inputs / Range | 2 MPPTs / 120–385V |
| Max Input Voltage (PV) | 480V |
| Start-up Voltage | 100V |
| Max PV Current (MPPT) | 35A x2 |
| Battery Voltage Range | 38.4–60V |
| Max Charge/Discharge | 12kW (100A), 90% efficiency |
| Surge Capacity | 150% for 5s / 110% for 10s |
| Grid Input Range | 90–280V AC / 50–60Hz |
| Rated Output Voltage | 120/240V or 120/208V (split-phase) |
| AC Passthrough Current | 100A |
| Bypass Relay Rating | 100A |
| Transfer Time | <10ms (single), <20ms (parallel) |
| Waveform / THD | Pure sine wave / <3% |
| Max Efficiency | 99.9% |
🚪 Protection & Standards
- AFCI + PV Arc Fault Detection
- Anti-islanding, RSD-ready, surge protection (Type III)
- Reverse polarity, overload, and short-circuit protection
- Integrated DC switch and full breaker set
- UL 1741:2021, CSA C22.2 #107.1, IEEE 1547:2018, FCC, CEC, NEC 690.12
📏 Mechanical Specs
| Spec | Value |
|---|---|
| Dimensions | 530 x 830 x 150 mm (17.2 x 25.9 x 5.9 in) |
| Weight | 45 kg (99.2 lbs) |
| Cooling | Smart active air-cooled |
| Noise Level | <50 dB |
| Protection Rating | IP20 |
| Altitude Limit | 2000m |
| Operating Temp Range | -15°C to 60°C |
| Display & Comms | Color touchscreen + RS485, WiFi, CAN |
| Warranty | 10 years (Maple Leaf Power Systems) |
