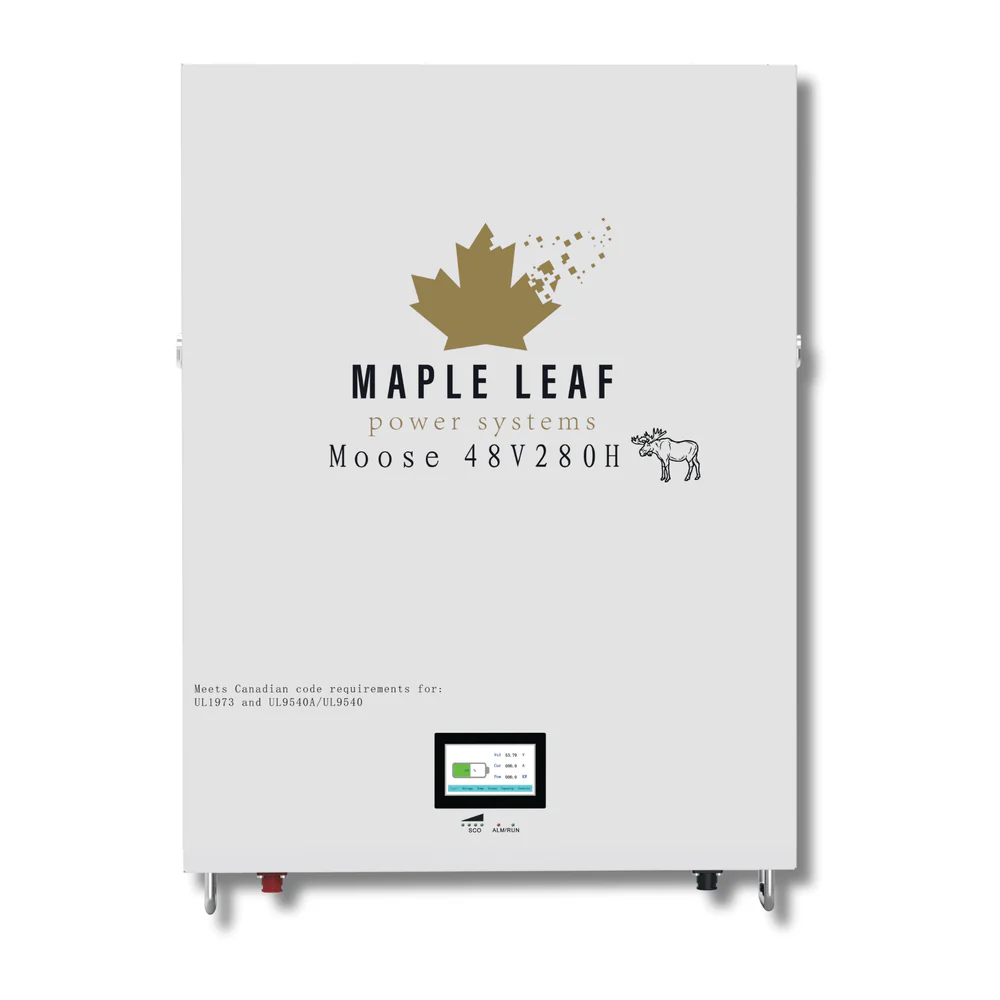

Maple Leaf 14.34kWh 48V 280A | MOOSE Wall-Mounted Lithium Battery
$6,800.00
14.34kWh 48V lithium battery with 280Ah capacity, Grade A LiFePO4 cells, and 15-year warranty. Features smart BMS, 5-inch LCD screen, and 6500+ cycles. Wall-mounted, scalable up to 229kWh. Ideal for off-grid, backup, and hybrid systems.
Industrial-Grade Energy. Built for Canadian Power Needs.
The Maple Leaf MOOSE 14.34kWh 48V Lithium Battery is a high-performance, wall-mounted energy storage system designed for demanding residential and commercial solar applications. Engineered in Canada, it combines premium LiFePO4 chemistry, an advanced BMS, and an impressive 15-year warranty — making it one of the most reliable solar batteries in its class.
With over 6500+ cycles, a 5-inch touchscreen display, and full smart communications (RS485/CAN), the MOOSE battery integrates seamlessly with leading inverters. Built with Grade A cells, it delivers unmatched safety, scalability (up to 229kWh), and power density — ready to meet the energy needs of grid-tied, off-grid, or hybrid systems.
✅ Key Features
- 14.34kWh capacity / 280Ah rated power at 51.2V
- Scalable up to 229kWh (max 16 units in parallel)
- Intelligent BMS with short-circuit, overvoltage, and temperature protection
- 5-inch color LCD touchscreen for system status and control
- 6500+ cycle life at 80% DoD
- Dual industrial heavy-duty power switch for safety
- Premium Grade A LiFePO4 cells
- Wall-mounted with integrated LED indicators

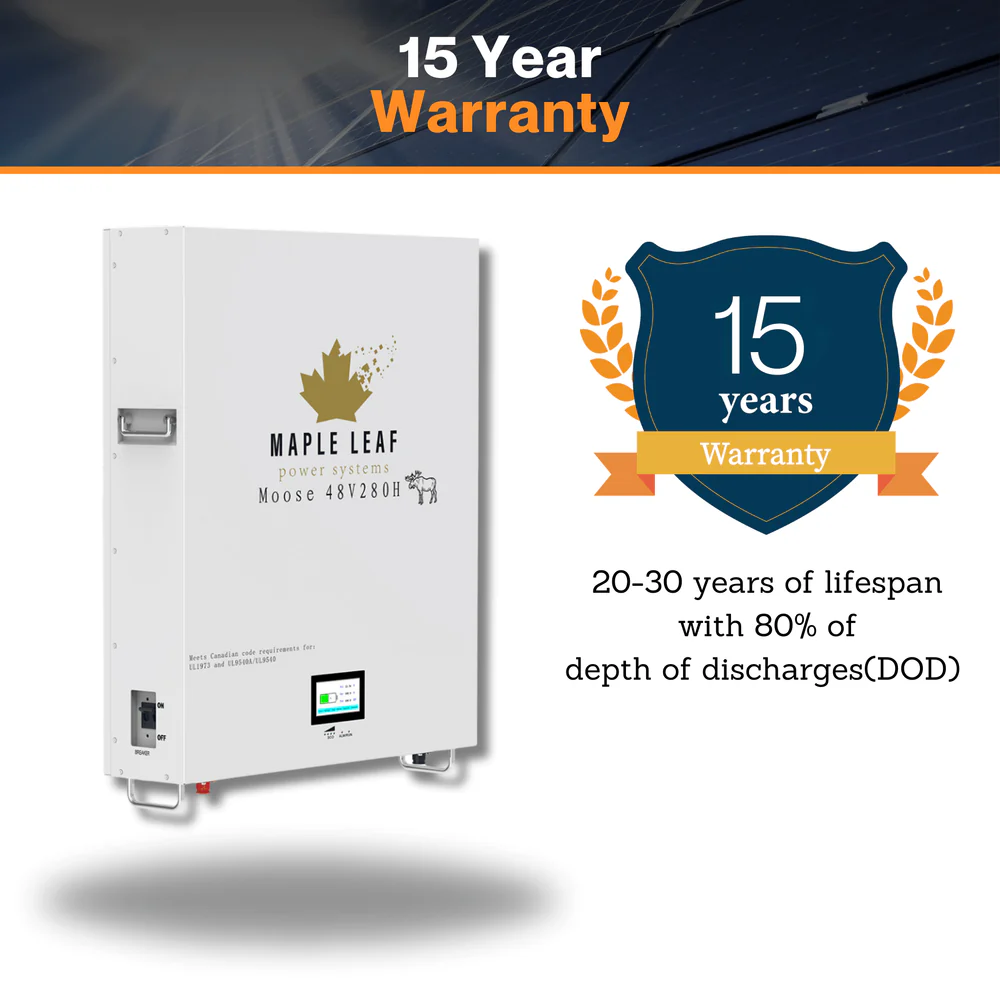

- 15-year warranty with projected 64.8MWh output @ 80% EOL
🔧 Technical Specifications
| Parameter | Details |
|---|---|
| Model | BAMLWM280A |
| Battery Chemistry | LiFePO4 |
| Nominal Voltage | 51.2V |
| Operating Voltage | 46V–56V |
| Nominal Capacity | 280Ah |
| Energy | 14.34kWh |
| Usable Energy | 12.91kWh |
| Recommended DoD | 80% |
| Cycle Life | ≥8500 cycles (at 25°C, 0.5C, 80%EOL) |
| Max Continuous Current | 150A |
| Peak Current (2min @ 25°C) | 200A |
| Installation | Wall-mounted |
| Weight | 128.5 kg / 283 lbs |
| Dimensions (W x H x D) | 900 x 675 x 200 mm |
| Display | 5″ LCD Touchscreen |
| Communication | CAN 2.0, RS485 |
| Enclosure Rating | IP20 |
| Operating Temp | Charge: 0°C–55°C / Discharge: -20°C–55°C |
| Certifications | UL 1741:2021, CSA, IEEE 1547.1, FCC, NEC 690.12 |
| Warranty | 15 years |
